Opcom firmware 1.95 released recently, saying it works with Vaux-com 120309a and much more better than opcom 1.70 and 1.65.
Is it true? Does Opcom 1.95 any good?
Upload photos.
Diagnostic Tools Firmware PIC18F458&FTDI Chip OPCOM V1.99 V1.95 V1.70 10PCS LOT PCB For G M NEC Relay OP COM Scanner 1.95 OP-COM US $222.24 - 259.08 / Lot The diagnostic for cars can help us find out whether there is a problem in the motorcycle, thus we can solve the problem in time with diagnostic in automotive to avoid potential danger. Mar 11, 2016 OPCOM firmware introduction: OP-COM China clone ( op-com 100219a ) from 2009 use fw 1.39 – do not use other firmware. OP-COM software from 2011 use fw1.44. OP-COM software from 2012 used fw 1.45 and the software released at the end of that year used fw1.47. Opel Diagnostics - OPCOM V1.45 Setup & Installation: IntroductionThis Instructable will help you set up and use the Opel hardware and software. It is specific to OPCOM V1.45 which was made in China. It was developed a number of years ago and software support has diminished since then. It is for this r. Opcom firmware 1.95/1.70/1.65/1.59/1.45 Win 7/8/10 Download & Install Opcom Vaux com Win7 Win8 Win 10 Install Free download Op com diagnostic tool Vaux-com 120309a and install on Windows 7/8/10/XP, including the latest version Opcom 1.95 Vaux-com 120309a Windows 7. Opcom fw 1.95 PCB Display: opcom-195-pcb How to install Opcom V1.95 VAUX-COM Software Driver on Windows 7? Step 1 Install Driver Open opcom software CD install-opcom-195-1 Copy Opcom drivers folder to desktop Extract Opcom 2012+ DB 2014.zip folder Copy Opcom 2012+ DB 2014 folder to desktop Connect opcom 1.95 interface with laptop install.

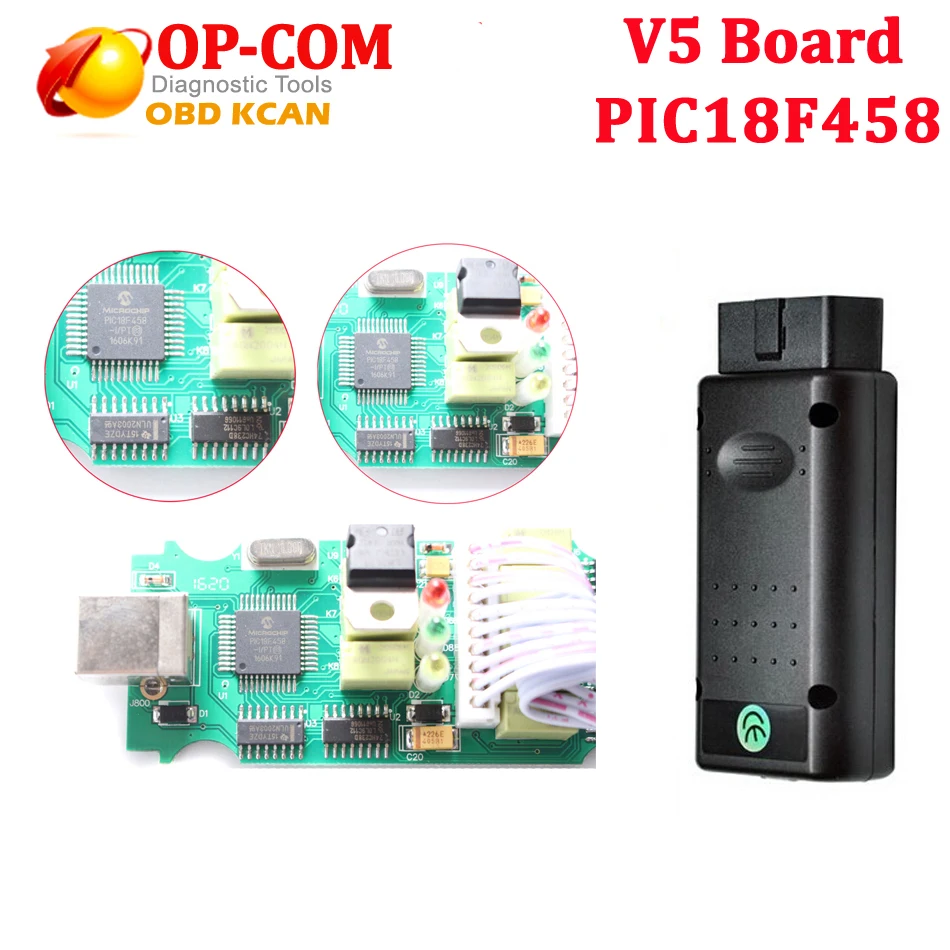

the first photo: opcom fw 1.95
the second photo: opcom fw 1.70
Opinions from three professionals/users might help you.
- opcom 1.95 and 1.70 – the same
I can see that the 1.95 and the 1.70 are the exactly the same.
From photos I can see difference only with some tantalum caps. In 1.95 they are through hole and in 1.70 they are the smd type. Also you can see from the pictures they have the same silkscreen markings C20 and C21, also rest of components have the same markings. Also the firmware number of the 1.70 is fake as said mattydr67.
Also I think the Opcom V1.70 have better PCB quality compared to another version 1.95
- original PIC chip – the most important
Most important is to have an original PIC chip that can program new firmware.
The version 1.70 have a flashable PIC mcu inside. I kill my Opcom twice and I flashed it with PICkit 2 without any problems, but the problem was not with mcu and with FT232 with wrong firmware. Also in ver. 1.70 there is ICSP connector with which you can flash MCU directly with PICkit programmer.
- opcom 1.64 – last official
The last official firmware is 1.64
Check also the official op-com.hu and you will see there the newest firnware version that it will come in the new version of opcom and it will be fw1.66
So I suppose I answare to you about this new firmwares versions that all are fake one.
For vaux-com 120309a you need only Opcom fw1.45
Even you are using the fake vauxcom 120309a+131223a version you need also fw1.45
Not any newer. But you can use any newer versions of firnware but you will have nothing new and it will not help you more then fw1.45
To answare to your question about which tool to buy the DO NOT buy the last one. ( its using a not real MCU )
Source:http://blog.cardiagtool.co.uk/opcom-firmware-1-90-vs-op-com-firmware-1-70/
Related posts:
Opcom Vaux com Win7 Win8 Win 10 Install
Free download Op com diagnostic tool Vaux-com 120309a and install on Windows 7/8/10/XP, including the latest version Opcom 1.95 Vaux-com 120309a Windows 7.
Vaux-com 120309a download free for Op com firmware 1.95/1.70/1.65/1.59/1.45:
Vaux-com 120309a works great with:
How to install Opcom diagnostic vaux-com 120309a:
vaux-com 120309a Windows XP
vaux-com 120309a Windows 7
vaux-com 120309a Windows 8
vaux-com 120309a windows 10
How to install Opcom on Windows XP:
Here is the installation instruction on OPCOM Hardware V1.59 on Windows xp.
Open “My Computer/ OP-COM (E:)” to copy all the files to a new established folder named “op-com” in “Local Disk (C:)”.
The send “OP-COM” from“Local Disk (C:)/op-com” to Desktop.
Install software for USB Serial Converter
Click on “Next” with the selection of “Install from a list of specific location (Advance)”.
Select “search removable media” and “include this location in the research”, then to “Browse” for “Desktop/My Computer/Local Disk (C:)/op-com/Drivers”. Then Click on “Next”.
Click on “Next”.
Click on “Finish” for successful installation of the software for USB Serial Converter.
Right Click on “My Computer” for “Manage”.
Select “Device Manager/PC-201103301537/Universal Serial Bus controllers/USB Srial Converter”.
Close the interface.
Open “Shortcut to CP-COM”.
Select “Settings”.
Click on “Test Interface”. And Click on “Close” on “Interface Test Result”.
Click on “Save Config” button, Click on “OK” for “Configuration saved”.
Select “Diagnostics”.
Click on “Automatic Vehicle Information”.
Click on “KWP-2000”.
Click on “Diagnose ECM”.
Click on “Back”.
Opcom Fw 1.95 Hexagon
Click on “Fault Codes” button.
Click on “Back”.
Click on “Close”.
Click on “Back”.
Click on “Back”.
Click on “Back”.
Click on “Back”.
Click on “Close”.
END
opcom Vaux-com 120309a widows 7 install:
Opcom 1.95 Windows 7 Install:
Step 1 Install Driver
Open opcom software CD
Copy Opcom drivers folder to desktop
Extract Opcom 2012+ DB 2014.zip folder
Copy Opcom 2012+ DB 2014 folder to desktop
Connect opcom 1.95 interface with laptop
Device driver software was not successfully installed
No driver found.
Opcon Computer-> Manager->Device Manger-> Other device-> Opcom USB V2
right click Opcom USB V2
select Update Driver Software
Select Browse my computer for driver software
save driver software to C:/Users/AADD/Desktop/Opcom drivers
Windows has successfully updated your driver software
Check now you can see USB Serial Converter
right click USB Serial Converter ->Driver tab
Driver has been successfully installed
Step 2: Run Self Test (2014V Software)
Open Opcom 2012+ DB 2014 folder on desktop
Run VAUXCOM software as administrator
Select Settings
Test interface
Frimware version V01.95
interface test ended successfully
Save configuration.
Step 3: Run 2014V VAUX-COM 120301a Fallout 4 ww2 helmet mod.
Select Diagnostic functions
Opcom Fw 1.95 Hex Pro
Select Automatic Vehicle Identification
select KWP-2000
It’s a 1997 Opel Omega-B
opcom v1.95 auto detect vehicle information i.,e VIN, model, engine code etc
select diagnose ECM
Select Fault codes functions
Check Special Functions of this model
Program immobilizer function options
Output test options
Measuring Blocks options
2014V op-com software also supports GM based SAAB and special PSG5 diesel pump
Step 4: Run optional 2012V opcom
Opcom Fw 1.95 Hexagonal
Open Opcom 2012 zip file on software CD
Copy Opcom 2012 folder on desktop
Open Opcom 2012 folder
Run OP-COM setup as administator
Run self test and diagnostic
Done.
Opcom 1.70 Windows 7 Install:
installing opcom on windows 8:
Opcom windows 8 “driver not found”:
Can’t get it to run on windows 8, worked fine on my old w7 laptop. Tried to download software from the disc that came with the op-com then went to devise manager to op-com v2 to find drivers. Clicked on the drivers file but was told the drivers couldn’t be found
Customer solution of Vaux com windows 8:
I had the same problem when ideally I would have liked to of run Vaux-Com on my Windows 8 laptop. However since I have several machines running different OS’s anyway I didn’t bother trying the following solution.
Microsoft gave Windows 7 users a way to run older applications via ‘Windows XP Mode’. With Windows 8 that mode is no longer officially supported, and if you want to run Windows XP in a virtual machine, you need the license for it.
Opcom Fw 1.95 Hexagon
There is a workaround however,within the free WindowsXPMode_en-us.exe file, there’s a VirtualXPVHD file containing the Windows XP virtual machine, which you can open in VirtualBox.
Here are the steps to get this working:
- Download http://www.microsoft…ls.aspx?id=8002from Microsoft. You’ll need to run the validation tool to prove your copy of Windows is valid.
- Then use 7-Zip or another archive tool to open the EXE file as an archive.
- Within that archive, find the “sources/xpm” file within it, and extract that folder to your hard drive.
- Finally, in the extracted xpm file, you’ll find a file called VirtualXPVHD. Rename it with a VHD extension.
In VirtualBox, open the VirtualXPVHD virtual machine, and voila! You’ve got Windows XP Mode (running Windows XP Professional) in Windows 8, no need for the XP license.
This might also be possible with Windows 8’s built-in virtual machine manager, Hyper-V, but that’s only available in Windows 8 Pro.
opcom china clone windows 10:
This explains how to step by step install OPCOM VAUX-COM 120309a software driver on Windows 10, especially for those troubled with “OP-COM usb is not detected on Windows 10”.
Run VAUXCOM.exe
Allow this app to make changes to your device
Go to Settings in VAUX-COM 120309a
Test interface
Connect the interface to the USB port, or install the USB driver
Close VAUX-COM 120309a
Opcom Computer management
Launch the troubleshooter
Again, open Computer management
Uninstall USB Serial Converter
Disconnect the internet
Update driver- OP-COM USB V2
Opcom Fw 1.95 Hex Driver
Browse my computer for driver software
Continue installing this driver
Again, run VAUXCOM.exe as administrator
Allow this app to make changes to your device
Go to Settings
Then Test interface
Firmware version tested successfully
Apply settings
Go to Diagnostics
…
Successfullyinstalling opcom on windows 10!!
